Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD

 Xtool immo tablets can read immo data from VAG MQB NEC35XX Continental/VDO clusters by OBD.



For example:

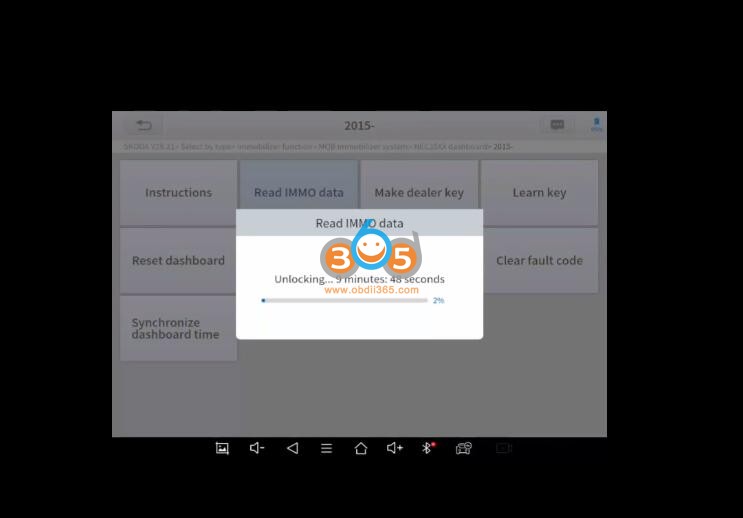

Use xtool x100 pad3 SE i read cluster from skoda fabia MQB nec35xx by obd but you must wait 10min to unlock the mcu nec35xx and 2 min to read immo data and you can add key. It takes 15 min to get immo data.



Menu path:

Select by type->Immobilizer->MQB Immobilizer system->NEC35XX Dashboard->2015-> Read IMMO Data

Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 1

Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 2
Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 3

Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 4
Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 5

Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 7

Xtool X100 PAD3 Read MQB NEC35XX Immo Data via OBD 8

NOTE:

Yes for vdo continental. If it is JC cluster, it is not supported.

JC cluster you need to disassemble the dashboard and read it on the table with the vvdi programmer or xp400 pro.

Nec35 locked JC cluster you need to do it on bench via vvdiprogMQB solder free Adapters are cleaner and easier to use.

How to Read MQB D70F3537 with Xhorse MQB48 Solder Free Adapter?

or read immo data with xp400 pro with APB130.

Read VW Polo MQB48 IMMO Data with Autel IM608 and APB130

Rh850 needs podiag interface or vvdi key tool plus rh850 adapter to read immo data.
