Xtool IK618 Program Toyota 8A H All Keys Lost

 Tutorial: How to program Toyota 8A (H) Chip non-smart key all key lost using Xtool and M822 adapter.



Tool used:

Xtool InPlus IK618 (or X100 PAD3, X100 PAD3 SE, X100 MAX, D8, D9D9 Pro, A80PRO, IP819, IK618, D8BT, A80, A80PRO MASTER, IP616, IP819TP etc)

XTOOL M822 Adapter For Toyota 8A AIl Key Lost
XTOOL KC100 or KC501
XTOOL KS-1 for Toyota Smart Key All Key Lost

Xtool IK618 Program Toyota 8A H All Keys Lost 1

Vehicle Coverage:

For Toyota Levin
For Corolla
For RAV4
For Prado
For Land Cruiser
For Camry
For Highlander
For Reiz
For Sienna
For Hiace
For Hilux
For Crown Kluger
For Aygo with IMMO box F3-F4-K6-S6



Procedure:

1.Back up Immo data

2.Generate emulator key

3.Add key



1.Back up Immo data

Select Toyota->By Type->All blade keys lost (8A)->Wiring diagram->Corolla

Xtool IK618 Program Toyota 8A H All Keys Lost 2

Xtool IK618 Program Toyota 8A H All Keys Lost 3

Xtool IK618 Program Toyota 8A H All Keys Lost 4


Connect M822 Toyota harness with vehicle follow the wiring diagram

Xtool IK618 Program Toyota 8A H All Keys Lost 5

Xtool IK618 Program Toyota 8A H All Keys Lost 6

Xtool IK618 Program Toyota 8A H All Keys Lost 7

Xtool IK618 Program Toyota 8A H All Keys Lost 8

Xtool IK618 Program Toyota 8A H All Keys Lost 9

Read Immobilizer data

Xtool IK618 Program Toyota 8A H All Keys Lost 10

Save immo data

Xtool IK618 Program Toyota 8A H All Keys Lost 11

2.Generate emulator key

Insert KS-01 emulator into KC100 or KC501 programmer

Select Generate 8A simulator key

Choose a key position to generate key (if emulator cannot start, choose other key position)

Xtool IK618 Program Toyota 8A H All Keys Lost 12

Xtool IK618 Program Toyota 8A H All Keys Lost 13

Generate emulator key successfully. The KS-01 emulator key can start car.

Xtool IK618 Program Toyota 8A H All Keys Lost 14

3. Add keys

Choose Key programming function->Add keys

Xtool IK618 Program Toyota 8A H All Keys Lost 15

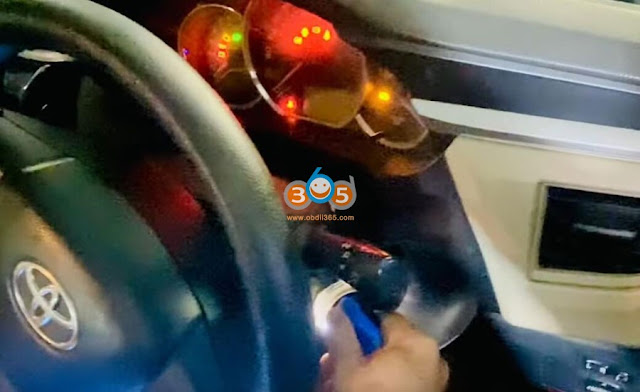

Turn on ignition switch with KS-01 emulator

Then insert a key to be programmed and turn on ignition.

Xtool IK618 Program Toyota 8A H All Keys Lost 16

Xtool IK618 Program Toyota 8A H All Keys Lost 17

Xtool IK618 Program Toyota 8A H All Keys Lost 18

Security light turns off. Programming completed.

Test the new key.
