Xtool D8S D9S IP919 Add Pre & Post Scan Feature

 Xtool 8 inch and advanced diagnostic scanners released new features at the beginning of Oct. 2024.



Devices affected: XTOOL D8S/D8W/D9S/D9S PRO/IP919/IP919 PRO/IP900/IP900S



New features:

1. Pre/PostScan

2. Four types of diagnostic reports

3. Add icons to important systems

4. New layout of diagnostic report

5. Diagnostic report displays repair shop logo

6. Classification/merge of diagnostic reports

7. Optional content saved in diagnostic report

8. Customer information can be added to diagnostic report

9. Additional information can be added to diagnostic report

10. Diagnostic report name can be modified

11. New diagnostic report email format





This is a Pre and Post scan feature that Xtool has now put into their diagnostic app and you can see right there.

Hit Pre-Post Scan. It’s going to go through a post scan now.

We finished the post scan so now whenever you back out of this then you hit Yes.

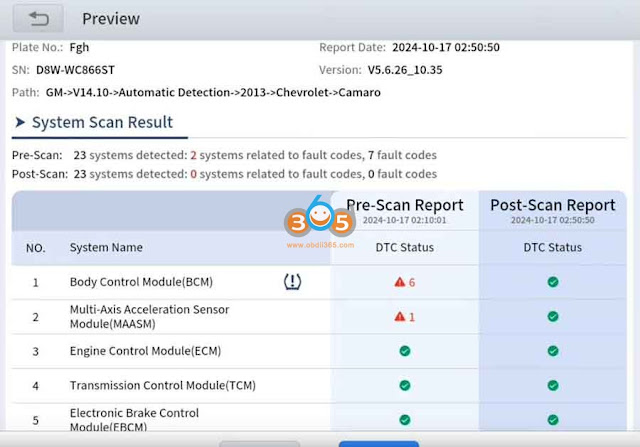

You are going to get be present with this report details and you can see up at the top where it says pre-scan report.

If you click the little down arrow you’ve also got post-scan report.

You can modify report information, Customer info, additional info, report name etc

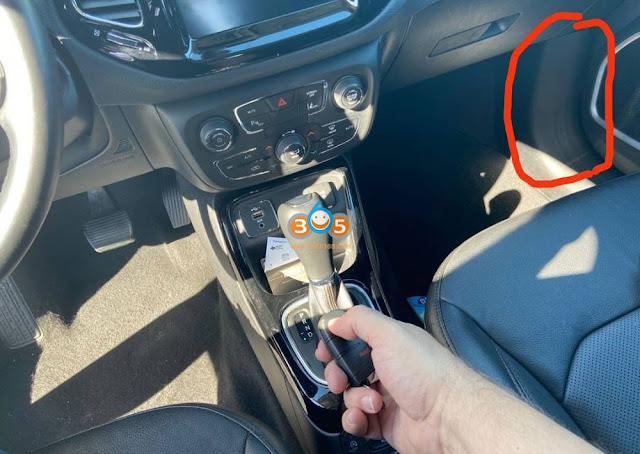

Xtool X100 PAD3 Read Jeep Compass 2020 Pin Code

 Jeep Compass 2020 USA, add smart key autel im608, read pin by xtool x100 pad3, to bypass the security gateway, you need to connect needles to the can line.



Connect needles to the can line to bypass the gateway.

Read pin code with x100 pad3.

Menu path: Select by model->North America->Compass-> 2019-2020->Smart Key->Read PIN Code

Generate Autel ikey universal remote with Autel IM608 under this option.

Program key with IM608.

Xtool IP919 vs IP919 Pro vs IP900 vs IP900S

 2024 new Xtool InPlus series diagnostic tool comparison: including D9S Pro, IP919, IP919 Pro, IP900 and IP900S.



Xtool D9S Pro vs Xtool IP919 vs IP919 Pro

Item	Xtool D9S Pro	Xtool IP919	Xtool IP919 Pro
Operating system	Android 10.0	Android 10.0	Android 10.0
Screen	9.7” Touch Screen, 1024*768 Resolution	10.1” Touch Screen, 1920×1200 Resolution	10.1” Touch Screen, 1920×1200 Resolution
Processor	Quad-Core 1.8GHz CPU Processor	8 Core 4.0 Ghz CPU Processor	8 Core 4.0 Ghz processor 1.8GHz
RAM	4G	8G	8G
ROM	128G	128G	128G
Battery	12800mAh*3.7V	6400mAh*7.2V)	6400mAh*7.2V)
Connection	USB/Wi-Fi/Bluetooth	USB/Wi-Fi	USB/Wi-Fi
Camera	8MP camera	8-megapixel autofocus rear camera	8-megapixel autofocus rear camera
VCI	X-MVCI	X-MVCI	X-MVCI
CAN FD	Yes	Yes	Yes
DoIP	Yes	Yes	Yes
Full system diagnostics	Yes	Yes	Yes
Bi-Directional Control (active test)	Yes	Yes	Yes
ECU Coding	Yes	Yes	Yes
ECU Programming	Yes, BMW, Benz, VW, Audi, SKODA online programming and Ford, Mazda offline programming	X	Yes, BMW, Benz, VW, Audi, SKODA online programming and Ford, Mazda offline programming
BMW Test Plan	X	X	Yes
Special functions	42	42	42
Refresh Hidden Functions	Yes	Yes	Yes
VAG Guided functions	Yes	Yes	Yes
Autovin/Autoscan	Yes	Yes, Autoscan 2.0	Yes, Autoscan 2.0
Topology Mapping	Yes	Yes, Topology Mapping 2.0	Yes, Topology Mapping 2.0
Multi-language	Yes	Yes	Yes
Update	3 years free update	3 years free update	3 years free update
Support Russian cars	Yes	Yes	Yes
Supports Malaysian cars	Yes	Yes	Yes
Support Brazilian cars	Yes	Yes	Yes
Compatible with KC501/KC100	Yes	Yes	Yes
Videoscope	With XV100	With XV100	With XV100
Supports M821	Yes	Yes	Yes
Supports M822	Yes	Yes	Yes
Support KS-01, KS-02, SK1 emulators	Yes	Yes	Yes
Supports ADAS calibration		Yes, need equipment	Yes, need equipment

D9S Pro and IP919 Pro share similar functions except BMW Test Plan.  IP919 Pro improved hardware, it has larger screen, better resolution, larger storage and better processor, it is 10x faster then D9/D8 series. IP919 also has Topology Mapping 2.0, auto scan 2.0 and new data stream 2.0.

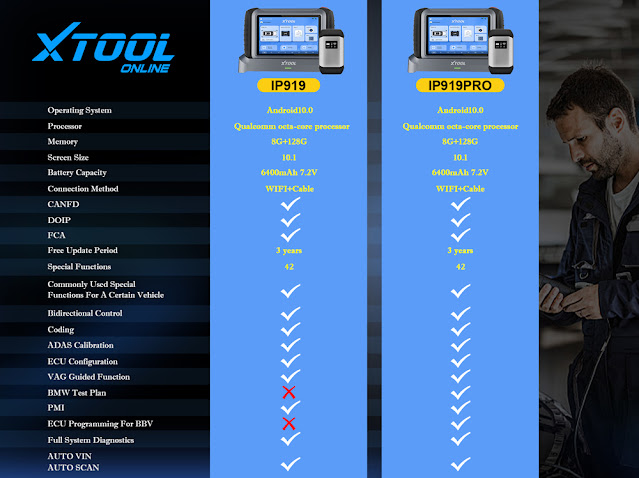

Table 2: Xtool IP919 vs IP919 Pro

IP919 and IP919 Pro share the same hardware parameter. The IP919 has a nearly identical sister product called the IP919Pro. The Pro model includes everything found in the IP919 but adds ECU Programming for BBV and the BMW Test Plan.

Table 3: Xtool IP900 vs IP900S

Item	Xtool IP900	Xtool IP900S
Operating system	Android 10.0	Android 10.0
Screen	8 inch 1024*768	8 inch 1024*768
RAM	4G	4G
ROM	64G	64G
Battery	5000mAh/7.3V	5000mAh/7.3V
Connection	USB	USB
Camera	8MP Rear	8MP Rear
VCI	No	No
CAN FD	Yes	Yes
DoIP	Yes	Yes
Full system diagnostics	Yes	Yes
Bi-Directional Control (active test)	Yes	Yes
ECU Coding	Yes	Yes
Up to 8 PIDS Graphing	Yes	Yes
ECU Programming	X	X
Special functions	38	38
Refresh Hidden Functions	Yes	Yes
VAG Guided functions	Yes	Yes
Autovin/Autoscan	Yes	Yes
Topology Mapping	X	Yes
Multi-language	15	15
Update	3 Years free update	3 Years free update
Videoscope	Yes, XV100, XV200	Yes, XV100, XV200
Key programming	Yes, with KC501 or KC100	Yes, with KC501 or KC100
Supports M821	Yes	Yes
Supports M822	Yes	Yes
Support KS-01, KS-02, SK1 emulators	Yes	Yes

IP900S and IP900 share the same hardware, the difference is that IP900S supports Topology Mapping and IP900 does not.





Table 4: Xtool IP900S vs D8S vs X431 V+ Pro vs MK906 Pro

IP900S supports Topology Mapping, Pre & Post scan functions.

Launch X431 has more language options.





IP900 vs IP919 series

IP900 is 8 inch tablet with 4G+64G storage,  IP919 is 10.1 inch tablet with 8G+128G storage.

IP900 does not have wireless VCI, IP919 does. IP919 Pro also supports ECU programming.

IP919 series has more special functions and supports ADAS calibration.

IP900 is better for starters and IP919 for professional users.



www.obdii365.com

Xtool X100 PAD Elite vs IK618 vs X100 PADS vs X100 Pro2

 Xtool ley programming tools comparison:

Xtool X100 PAD Elite 2 vs X100 PAD Elite (X100 PAD3) vs IK618E vs X100 PADS vs X100 Pro2

Check image below

Elite2 with V208 VCI with KC501 integrated, it supports bench programming and remote testing.
IK618 and X100 PADS have more special functions. They perform similar immo functions.
X100 Pro2 is the entry-level DIY tool, it does the least IMMO coverage.

Xtool X100 PAD3 Program VW Tiguan 2018 MQB Key via OBD

 It is a VW Tiguan 2018 with analog instruments. We are going to add a 3rd key for the car.

There are 2 options for this.

1.order original key through the dealer, wait a month and then register all the keys online
2.use third-party tools

Xtool X100 PAD3 will do this MQB with the analog instrument.

In order to program a new key, you need
1 Use the Xhorse XSMQB smart remote
2. Generate key for VW Tiguan with VVDI Mini Key Tool
3. With xtool x100 pad3
Read immo data from the instrument cluster via OBD
Read synchronization data from the original key

Read syn data from original MQB key

We make a dealer key from the Xhorse XSMQB series key using the immobilizer and synchronization data read by xtool pad3.

We re-register all the keys in the dashboard (2 original and one new).

Xtool D7 Program 2016 Citroen C4 Blade Key

 How to program a cheap ebay key (£16) for a 2016 Citroen C4 Cactus using the Xtool D7 or D8 obd2 diagnostic scanner. Citroen Dealer quoted £300!



Peugeot share the same procedure.

Procedure:

Go to Special Function->Program Key-> Citroen->Read security code
Automatic identify
Turn on ignition
Then switch ignition off

Reading pin code.

Follow xtool d7 prompt to turn on/off ignition
Press OK, then switch ignition on immediately
switch ignition off
Press OK, then switch ignition on immediately

Read pin code successfully.

Select Program Key-> Citroen->Select from vehicle-> C4 Cactus->Blade key
Xtool D7 will detect BSI, software and VIN info.

Save a screenshot

Select Program Key
All keys will be erased.
Auto input PIN to proceed.
Input number of keys: 2 to be programmed.

Switch ignition off
Insert the new key within 15s and switch ignition on

Program success, switch the ignition off and remove the key.
End programming, if you want to program the remote, switch ignition on, press any key of remote at least 3s.

I have done 3 different car keys so far.
I added a new key and also had to add the original key.
