Sunday, December 26, 2021

Xtool X100 Pad2 Add Nissan Qashqai 2019 Key without PIN

 Nissan Qashqai 2019 is programmed successfully without reading pincode or releasing steering lock with xtool x100 pad2.

it’s my first time programming Qashqai 2019 so I want to share the tip.

Didn’t read pin code, directly program key open driver door and close it then push the start button, wait 5 seconds and job done.

The key is original not generated.

The car is imported from Europe.

Xtool X100 Pad2 Add Nissan Qashqai 2019 Key 1

Here is the xtool x100 pad2 NISSAN Qashqai Function List V27.14 claimed by the manufacture.



  1. Nissan Qashqai from China:

With smart key system (20 pincode): program smart keys.

Without smart key system (20pincode): program key



  1. Nissan Qashqai from Europe:



2007 -2009: program remote  – Fault code, erase DTC, program keys.



2009-2013: program remote – Erase DTC, program keys, release steering lock



2009-2013: Mechanical key – Erase DTC, program keys, release steering lock



2009-2013: Smart key system – program smart keys, erase all smart keys, program steering lock



2014 – : Immobilizer system  – Type1 – program smart keys



2014 -: Immobilizer system  – Type2 – program key

Xtool X100 Pad2 Add Nissan Qashqai 2019 Key 2

Xtool X100 Pad2 Add Nissan Qashqai 2019 Key 3

Good to know:

Obdstar X300 Pro4 / obdstar X300 DP Plus is also able to program Nissan Qashqai 2019 Prox all keys lost via obd.

Read procedure here: http://blog.obdii365.com/2021/12/09/obdstar-program-nissan-qashqai-2019-prox-all-keys-lost/

Tuesday, December 21, 2021

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD

 How to program a new key for a 2014 Toyota Prius push start proximity all keys lost with xtool x100 pad (pad2/pad3) via OBD. The same procedure can be applied to Prius from year 2010 to 2018.

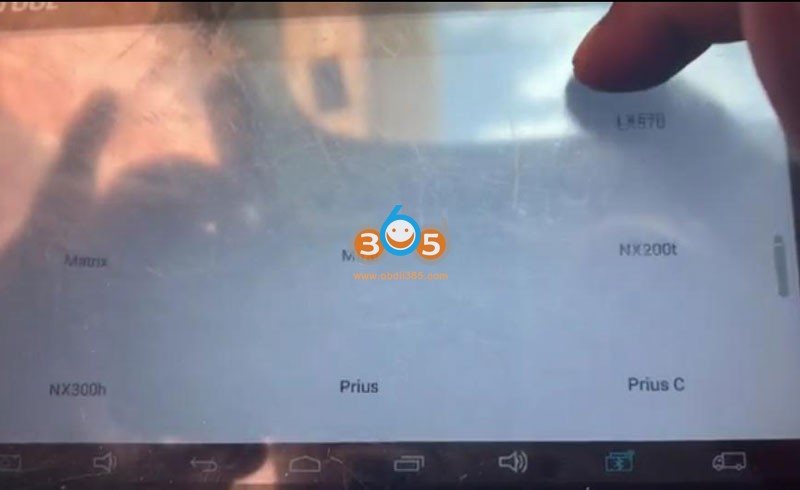

Select IMMO- Toyota- Key- By Vehicle- Prius- Proximity- 2010 to 2018- Reset Smart Key ecu (Smart Box)- Reste ECU (All keys lost)

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 1

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 2

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 3

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 4

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 5

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 6

Reset smart box takes about 16 minutes.

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 7

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 8

Reset smart box success

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 9
Select Program smart key after resetting

Put a new smart key to close the Start/Stop button

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 10

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 11

Program complete

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 12

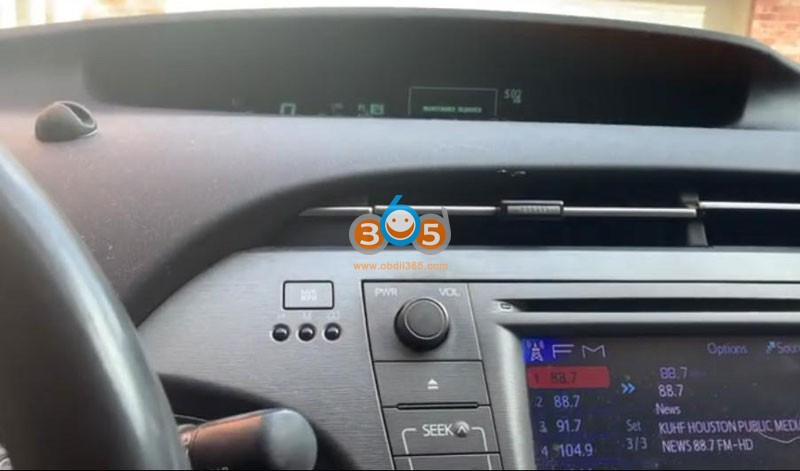

Test new key

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 13

Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD 14

The new key can start the vehicle, remote control works as well.

Done.

http://www.key-programmer.org/2021/12/22/program-toyota-prius-2010-2018-all-keys-lost-with-xtool-x100-pad/
