Xtool X100 Pro2 Mileage Correction Failure Solution

 Look at the following images showing Xtool X100 Pro2 key programmer can’t read out the mileage value no matter what car models to access.



obdii365.com engineer replied:

Please try the following 2 steps to solve the problem, if xtool still fail to read KM, please contact us for remote assistance.



Step 1. Connect Xtool X100 Pro2 to Windows PC, find the SD card and format it.

Step 2. Download and install this update tool, login with the S/N and password, then click on “Update”.

Xtool X100 Pro2 update tool free download:

http://down.xtooltech.com/misc/Xtool_Upgrad(TP150_TP200_X300P_X100PRO2_X100SUPER2)v1.0.1.5.rar

Note:

Notice! ! ! During the upgrade process, please do not operate the buttons of the Xtool X100 Pro2 or disconnect the data cable. After the update is successful, please unplug the data cable and then reconnect it.



Xtool X100 Pro2 tech support: www.obdii365.com.

Program Land rover 2015-2018 Smart Key with Xtool X100 PAD2

 Xtool tablets released new upgrade adding 2015-2018 Jaguar/Land Rover all smart keys lost/add key via OBD bypass PIN code in July 2021. Here is a demo guide on adding a spare smart key with xtool x100 pad2. All keys lost is similar to add key procedure. Same update goes to x100 pad3, a80 h6 pro etc.



1 Generate smart key

generate smart remote with keydiy remote and kd-x2 remote maker
Select Land rover – Landrover ID49 433MHz – Generate

Generate remote successfully
Test both keys to read ID

2.Program key with xtool x100 pad 2

Select Land rover in x100pad2, Land rover 2015-2018 – Read key ID

Put the key to be read into the KC100 adapter

Select add key By OBD

Select Yes if you have 1 working key
To perform add key function, 1). you must have an unlocked original car key 2). only supports the sub-factory key whose ID can be changed or the key generated by the salve machine

Delect vehicle KVM type FK72
Put original key in KC100

Read key ID from original key

Then put new key into KC100

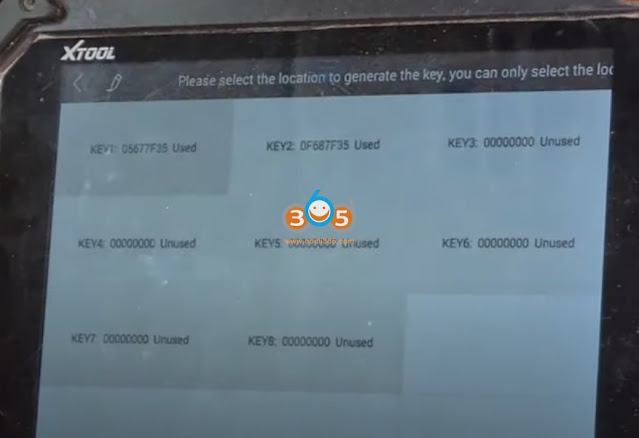

original key is stored at this position key ID:0F687F35

we will use this position (ID:05677f35) to store new key as the key is lost and no longer available
select this key position

Select No if we don’t want to add any other key

program success

test both keys, remote all working, both can start car.
Done.

http://www.key-programmer.org/2021/08/09/program-land-rover-2015-2018-smart-key-with-xtool-x100-pad2/

Xtool X100 Pro2 Blank Screen Solution

 Problem:

Can anyone help me please? My xtool x100 pro2 was working good so I wanted to update it but it didn’t work so I format it and now is not working at all.

Solution:

It is working now. Hold down this button, then connect the USB to update again.

follow the guide here to update Xtool Xtool Pro2 via PC

https://www.obdii365.com/service/update-xtool-x100-pro2-tp200-x300p.html



http://www.key-programmer.org/2021/08/06/solve-xtool-x100-pro2-blank-screen-problem/

Xtool X100 Pro2 and X100 Pro3 Comparison

 Both Xtool X100 Pro2 and Xtool X100 Pro3 are handheld scanner, they share the same OBDII scan and immobilizer key programming functions. Xtool X100 Pro3 has no odometer correction function and adds 5 special functions including Oil light reset, EPB (Electronic Parking Brake), Steering Angle Sensor (SAS) Service, TPS (Throttle Matching) and ABS Bleeding.

For language and update, there is no much difference.

	Xtool X100 Pro2	Xtool X100 Pro3
OBDII/EOBD	Reading Codes, Erasing Codes & Reset, Data Stream, I/M Readiness, Read Live Data Stream, View Freeze Frame Data, O2 Sensor Test, On-Board Monitor Test, Read Vehicle Information, Component Test
Immobilizer Key programming	Yes	Yes
EEPROM	Yes (pin code reading, EEPROM chip reading writing)	Yes
Odometer Correction	Yes	No
Oil light reset	No	Yes
EPB (Electronic Parking Brake)	No	Yes
Steering Angle Sensor (SAS) Service	No	Yes
TPS (Throttle Matching)	No	Yes
ABS Bleeding	No	Yes
Language	English, German, Spanish, Portuguese, French, Italian, Polish, Russian	French, Chinese, English, Spanish, Portuguese, German, Russian, Polish, Italian
Update	Free Update with Lifetime on Xtool Official Website	Online update on Xtool Official Website

Alright, here is the steps on how to update Xtool Xtool Pro2 (same as Xtool X100 Pro3)

https://www.obdii365.com/service/update-xtool-x100-pro2-tp200-x300p.html





Key programming: Xtool Xtool Pro2 VS Xtool X100 Pro3

Xtool Xtool Pro2	Xtool X100 Pro 3
Asia:  Toyota,  Honda,  Acura,  Mazda,  Lexus, Mazda,  Nissan,  Infiniti,  Mitsubishi,  Subaru,  Suzuki,  KIA,  Hyundai,  SSANGYONG,  QNLUTUS,  Mitsuoka	Acura, Audi, Benz, Chery, Chrysler, Citroen, Ds, Ferrari, Fiat, d, Geely, Gm, Honda, Hyundai, Infiniti, Jaguar, Kia, Landrover, Lexus, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peuegot, Porsche, Renault, Seat, Skoda, Smart, Ssangyong, Subaru, Suzuki, Toyota, VW…
Europe:  Audi,  VW,  Skoda,  Seat,  Porsche, Opel,  Citroen,  Peugeot,  Jaguar, Land Rover,  Renault,  Benz,  Ferrari,  Fiat,  Maserati,  MG,  Smart,  DS
America:  Lincoln,  GM,  Chrysler,  d
China: Changan,  Changfeng,  Changhe,  Chery, Brilliance, BYD, Huapu, JAC,  Lifan, GreatWall, HNMAZDA, Lufeng,  Roewe, SQYL, ZZNISSAN, Luxgen, Geely,  Hongqi, Hawtai, Besturn, Baic,  Baojun,  Dffengshen,  Dfliuzhou,  Betpurn



If you need mileage correction function, keeps x100 pro2.

Xtool X100 Pro2 Odometer Adjustment Coverage:

Asia	Hyundai,   Infiniti,   Isuzu,   KIA, Mazda,   Mitsubishi,   Nissan,   Proton,   SSANGYONG,   Subaru,  Suzuki
Europe	Audi, Bentley, Benz,Citroen, Ferrari, Fiat, Jaguar, Land Rover,   Maserati,   Peugeot,   Porsche,   Renault,   Seat,   Skoda,   Smart,   Volvo,   VW
America	Buick,  Cadillac,   Chrysler,   d/Lincoln,   GMC,   Hummer,   Oldsmobile,   Opel,   Pontiac,   Saturn
China	Besturn,   Geely,   Greatwall,   MG Roewe



Enjoy!

Xtool X-VCI Max Software Download and Installation

 What is Xtool X-VCI Max?

XVCI Max is professional programming equipment that works with Xtool A80 Pro/H6 Pro diagnostic system for cars which supports SAEJ2534-1 and SAEJ2534-2 two international programming protocols.

What’s the function of Xtool X-VCI?

J2534 ECU Programming: ECU software upgrade and calibration & ECU replacement brush writing and programming

It has the same function as Autel MaxiFlash J2534 or MaxiIM JVCI box which is compatible with OEM manufacturer software to perform online programming.

It is the same as Autel MaxiSys that comes with built-in free BMW and Mercedes online programming.
It supports Land rover, Jaguar, Volvo, Toyota, GM, Honda etc OEM diagnosis software.





Xtool X-VCI Max Supported Brand List:

Supported Vehicles	Software	Make	Model
	Xentry, DAS Diagnostic	Benz	Benz, Smart, Maybach, FUGO
	ISTA-D, ISTA-P, E-Sys, INPA	BMW	BMW, MINI, Rolls Royce
	Porsche (Tester2 and Tester 3 DoIP)	Porsche	Porsche, New Porsche
	HDS (HONDA Diagnostic System)	Honda	Honda, Acura
	TIS (TOYOTA Techstream)	Toyota	Toyota, Lexus, Scion
	SDD, JLR Pathfinder	Landrover Jaguar	Land Rover, Jaguar, New Land Rover, New Jaguar
	Volvo	Volvo	Volvo, New Volvo
	GDS2, Tech2win	GM	Buick, Chevrolet, Cadillac, Opel
	Select Monitor SSM3, SSM4	SUBARU	Subaru
	Ford IDS	FORD	Ford, Lincoln, Ford Mustang
	ODIS	VW	VW, Audi, Skoda, Bentley, Lamborghini

How to Install Xtool X-VCI J2534 on PC?

Free download X-VCI Max PC software driver on Xtooltech official website:

http://down.xtooltech.com/misc/XTOOL_VCI_Driver_1.6.2.0902.exe



How to Install X-VCI Max J2534 Driver?

Run XTOOL_VCI_Driver_1.6.2.0902.exe

Hit Next

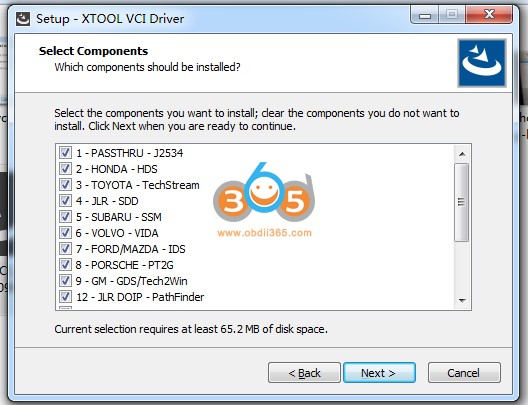

Select software program you desired

Install VCI driver success

Hit Finish

Run Xtool VCI Driver

Connect X-VCI Max with computer

Detect J2534 box information

Check software license

*Xtool VCI driver latest version is 1.62, you do not have to update the annoying license every 60 days.

VCI driver lists available OEM websites

X-VCI Max indicators turn on after connecting with vehicle and laptop successfully

FAQs:

Q: XTOOL uses the same firmware as VXDIAG?

A: Xtool tablet is not. the X-VCI J2534 yes, it is made by Allscanner which also made VXDIAG. You do not have to update the annoying license every 60 days. All supported brands will work fine with OEM applications.



Q: IDS/SDD and other program is included or only downloaded and used with X-VCI, as well as to use it have to pay a subscription or you only pay if you want to flash a module?

A: The IDS/SDD/GDS2/SSM/Techstream etc program is the original software. You have to purchase a license from corresponding manufacturer.

The VCI is just the way to connect (no subscription required by itself). And it has the ease of function of being able to be used with programs like these or to access flashes by direct single payment from the assembly company.

In short, the VCI is the communication channel between the laptop and the vehicle.



Q: If he can program keys and flash modules like MaxiSys?

A:  This adapter is not intended for keys. He will program the modules without any problems.



Q: what is the password for the DoIP VCI WiFi connection?

A:  The password is standard 12345678.



Q: I wonder if in Mercedes it is possible to do online SCN coding, for example, reset NOx via SCN on new Mercedes?

A: Yes, Since SCN can be done for free via a80/h6 pro. But it will be possible to try do it online.



Q: Where can I get the original software? in the net, mostly broken software!

A: Dealer software is not included in the package. If you do not want to use broken software, then you need to BUY it.



Q: Xtool A80 pro with X-VCI and Autel Maxisys which is better?

A:  Xtool is different to Autel, some ways more powerful, some ways less powerful. Xtool price ($1,199) bits Autel if you need built-in BMW and Benz online programming.
