How-to: Renault Duster 2010-2013 all keys lost transponder key programming by Xtool X100 Pad2 or X100 PAD3 (PAD Elite) via eeprom.
Step 1: Read Pin Code
Remove Renault Duster BCM module and disassemble the module
Locate chip ic 95040
Desolder the Eeprom chip into xtool adapter
Connect the adapter with xtool Eeprom adapter (25XXX)
Then connect Eeprom adapter with xtool x100 pad3

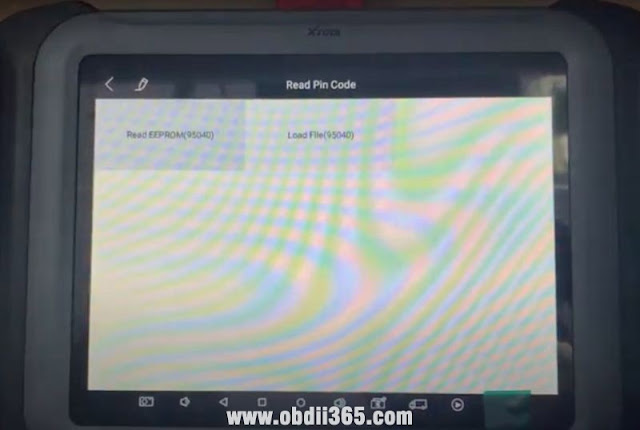

In x100 pad, select Renault ->Immobilizer->Duster->2010-2013->Read pin code->Read Eeprom (95040)
Eeprom adapter communication indicator flashes
Read data success, save data
Calculate pin code success
Take a screenshot of the Pin Code.
Step 2: Program Key
Solder the eeprom chip back to BCM board and install BCM module
Feed with power supply and ignition equipments
Select Renault ->immobilizer->Duster->2010-2013->Program key
Switch ignition off, remove the key from the ignition switch
xtool will ask to input pin code to access
Manual enter pin code in step 1 and confirm
Insert a key to be programmed and turn the ignition on
Wait for 10 seconds
Program key success, select not to program another key
Turn the ignition switch off
Wait for 10 seconds
Program key finished.
Test the new key.
Done.
